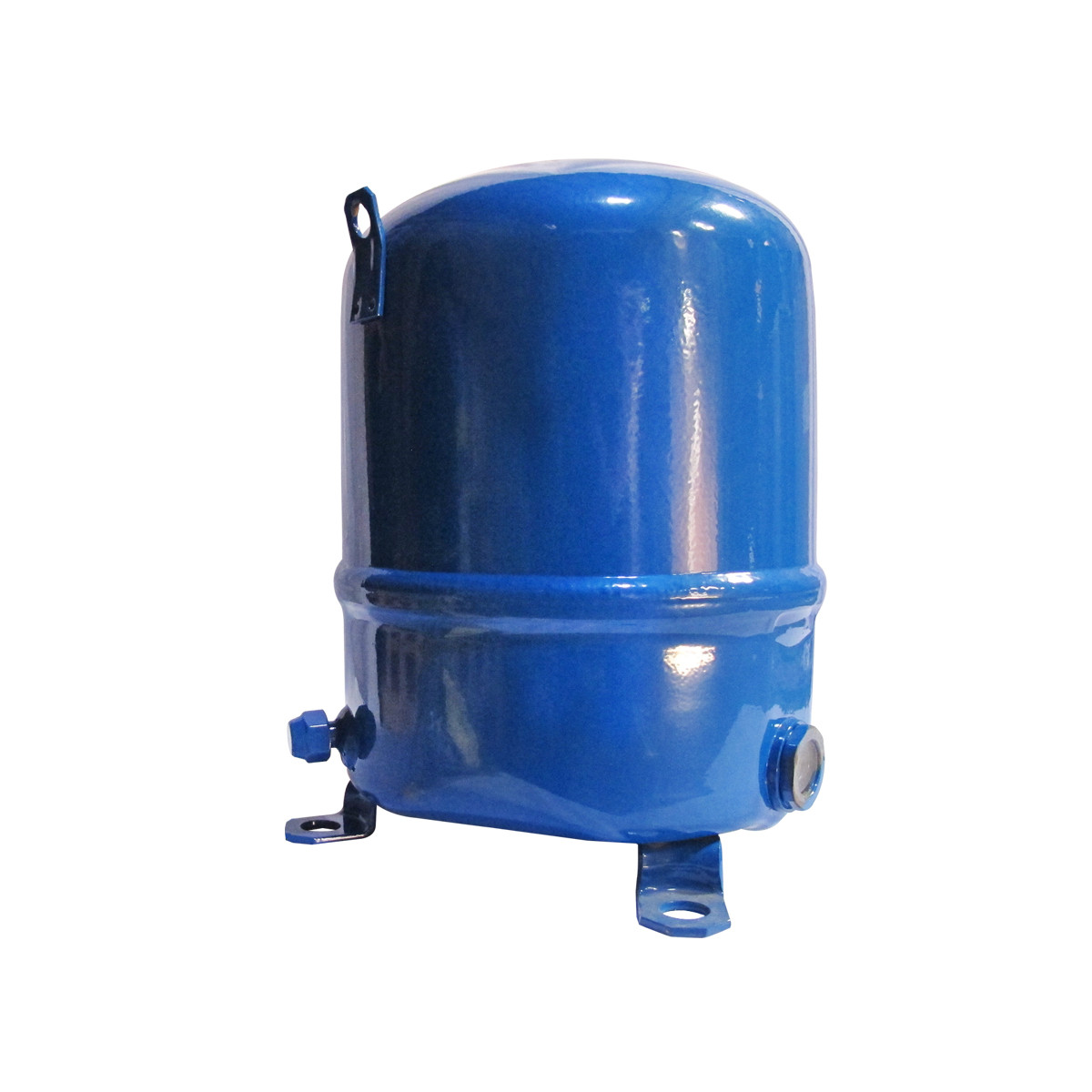

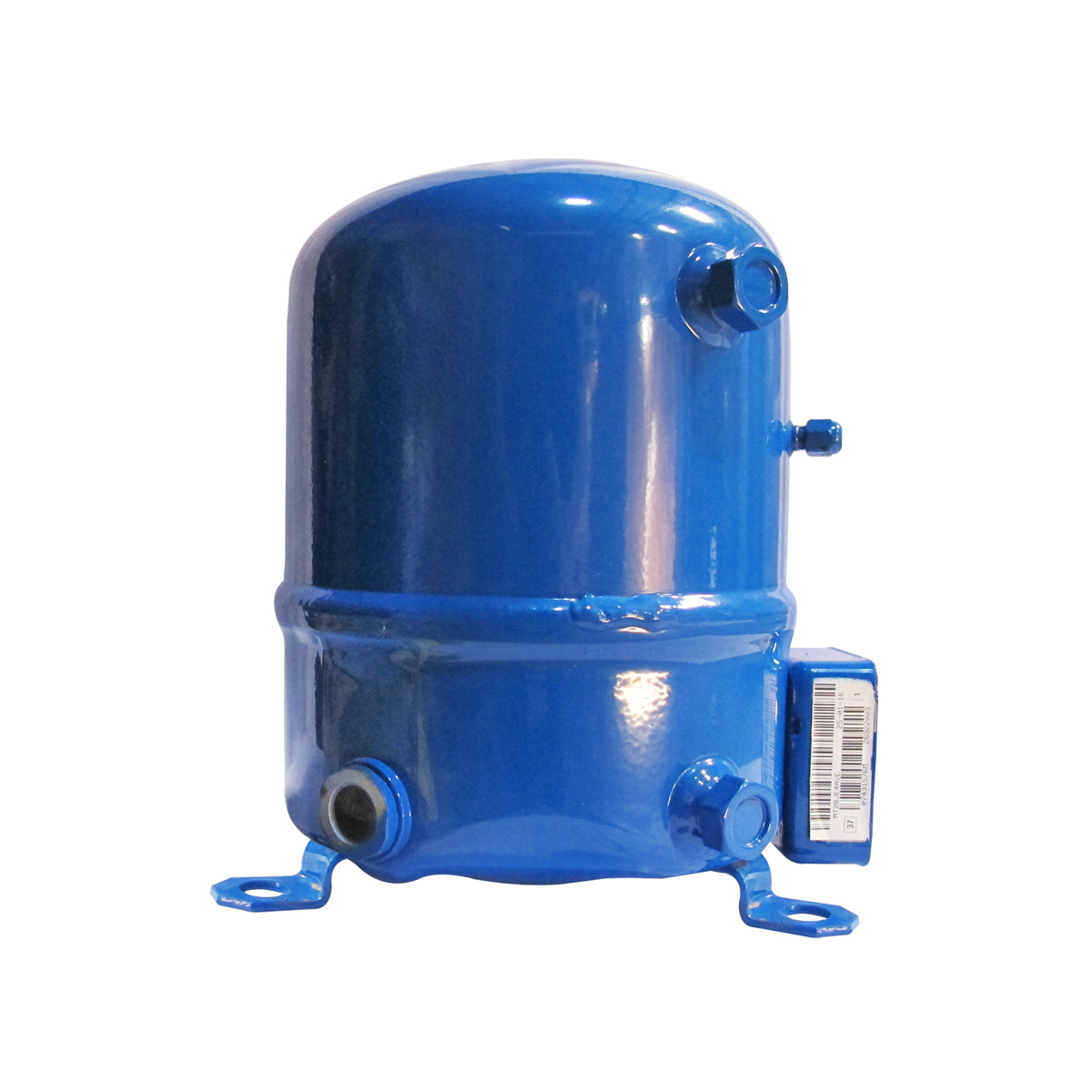

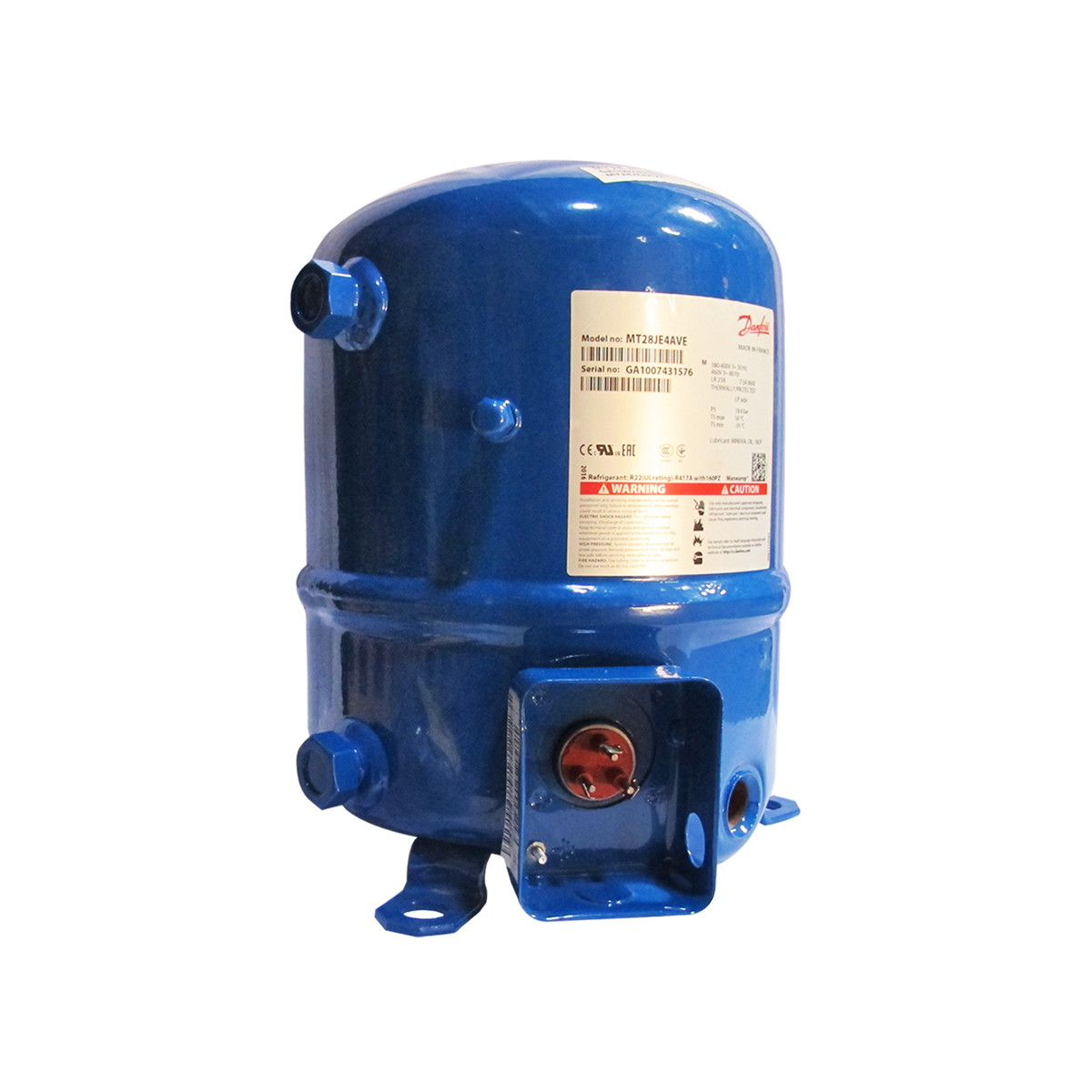

Danfoss Compressor MT28JE4AVE
Danfoss adalah Perusahaan multinasional Denmark yang Terkemuka, Didirikan pada Tahun 1933, Memproduksi banyak Produk Berkualitas serta telah Digunakan di seluruh Dunia termasuk Indonesia. Compressor Danfoss Maneurop dengan Seri MT dan MTZ adalah Kompresor yang Andal serta Dirancang untuk Aplikasi Suhu Evaporasi Sedang dan Tinggi. Telah Banyak Dipakai di seluruh Dunia karena Memiliki Kualitas yang Sangat Baik. Kompresor Jenis Reciprocating atau lebih sering disebut Kompresor Piston, Menggunakan Sistem Piston. Dapat Diaplikasikan pada beberapa Gas Refrigeran seperti R407A, R407C, R407F, R134A, R404A, R507A dan R22.
Danfoss Compressor MT28JE4AVE
Details
- Brand DANFOSS
- Brand Danfoss
- Type Maneurop
- Model Number MT28JE4AVE
- Net Weight (Kg) 23
- Type Designation Compressor Hermetic
- Technology Reciprocating
- Cylinder 1
- Nominal HP 2.4
- Connection Type Rotolock
- Refrigerant R22
- Voltage 380-400V, 50Hz, 3 Phase & 460V, 50Hz, 3 Phase
- Oil Mineral
- Application -
Tags
4vm compressor DANFOSS kompresor mt mt28 mt284vm mt28je4ave mtz piston reciprocrating torakKeunggulan lainnya yang dimiliki Kompresor Danfoss Maneurop seri MT dan MTZ selain Perawatannya yang Mudah, Kompresor Danfoss Maneurop seri MT dan MTZ Dapat di gunakan untuk Air Delivery dan Aplikasi dengan Tekanan yang Tinggi. Sangat Serbaguna karena dapat Diaplikasikan di Berbagai Macam Aplikasi Pendingin berikut:
- Walk-in Freezer dan Ruang Pendingin
- Pemrosesan dan Penyimpanan Makanan Beku
- Blast Freezer
- Low Temp Freezer
- Mesin Es Krim
- Kulkas Showcase
- Pendingin Air
- AC Berkapasitas Besar
- Dengan Pengoperasian dalam Kondisi Ekstrim
- Tidak Memerlukan Sirkulasi Udara Disekitar Kompresor
- Memiliki Keandalan Tinggi serta Tahan Lama
MT28-4VM
Refrigerant: R22
Phase: 3
Approval Standard: CCC CE UL
Color: Blue
Compressor Power Supply [V/Ph/Hz]: 400/3/50 460/3/60
Configuration Code: Single
Cylinder: 1
Description: MT028-4
Discharge Connection Mounting Torque [Nm]: 80
Discharge Connection Pipe Size [in]: 0.375
Discharge Connection Rotolock Size [in]: 1
Discharge Connection Size [in]: 1
Discharge Connection Sleeve Pipe Size [in]: 0.375
Drawing Number: 8501024e
Economizer: No
Factory HP [bar]: 25
Factory LP [bar]: 25
Fitting Remark: Shipped with Rotolock Version Only
Fitting Sleeve: ODF
Fitting Standard: Rotolock
Frequency [Hz]: 50/60
Gauge Port HP: None
Gauge Port LP: Schrader
Generation Code: A
Glass Mounting: Threaded
Glass Torque [Nm]: 50
GP LP Torque [Nm]: 15
Gross Weight [kg]: 24.25
High Value of Nominal Voltage at 50Hz [V]: 400
High Value of Nominal Voltage at 60Hz [V]: 460
High Value of Voltage Range at 50Hz [V]: 460
High Value of Voltage Range at 60Hz [V]: 506
IP Protection Class: IP55 (with Cable Gland)
Low Value of Nominal Voltage at 50Hz [V]: 380
Low Value of Nominal Voltage at 60Hz [V]: 460
Low Value of Voltage Range at 50Hz [V]: 340
Low Value of Voltage Range at 60Hz [V]: 414
LRA [A]: 29
MCC [A]: 7.5
Model Number: MT28JE4AVE

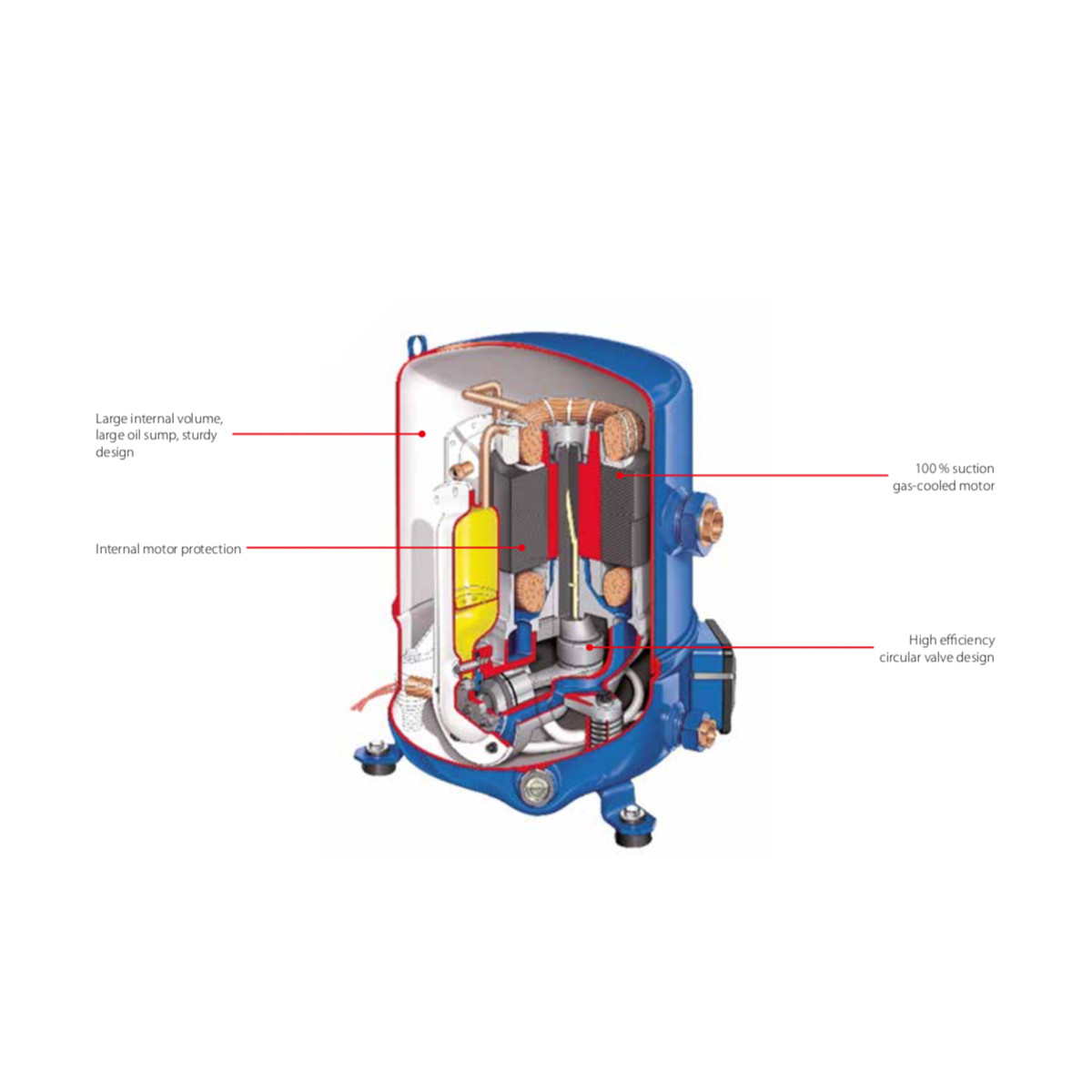

Motor Protection: Internal Overload Protector
Mounting Torque [Nm]: 15
Nominal Cooling Capacity 60 [kBTU/h]: 30.38
Nominal Cooling Capacity at 50Hz [kW]: 6.7
Nominal Cooling Capacity at 60Hz [kW]: 8.9
Number of Starts per Hour [Max]: 12
Oil Charge [L]: 0.95
Oil Equalization ['' flare SAE]: 3/8'' flare SAE
Oil Equalization Torque [Nm]: 30
Oil Reference: 160P
Packaging Height [mm]: 500
Packaging Length [mm]: 1150
Packaging Weight [kg]: 325
Packaging Width [mm]: 800
Power Connections: Spade
Product Type: MT
Refrigerant Charge [kg] [Max]: 2.5
Relief Valve: None
Rotational Speed at 50Hz [rpm]: 2900
Rotational Speed at 60Hz [rpm]: 3500
Segment Usage: Air-conditioning
Refrigeration: MT
Shipped Fittings: Suction and Discharge Solder Sleeves, Rotolock Nuts and Gaskets
Shipped Instructions: Installation Instructions

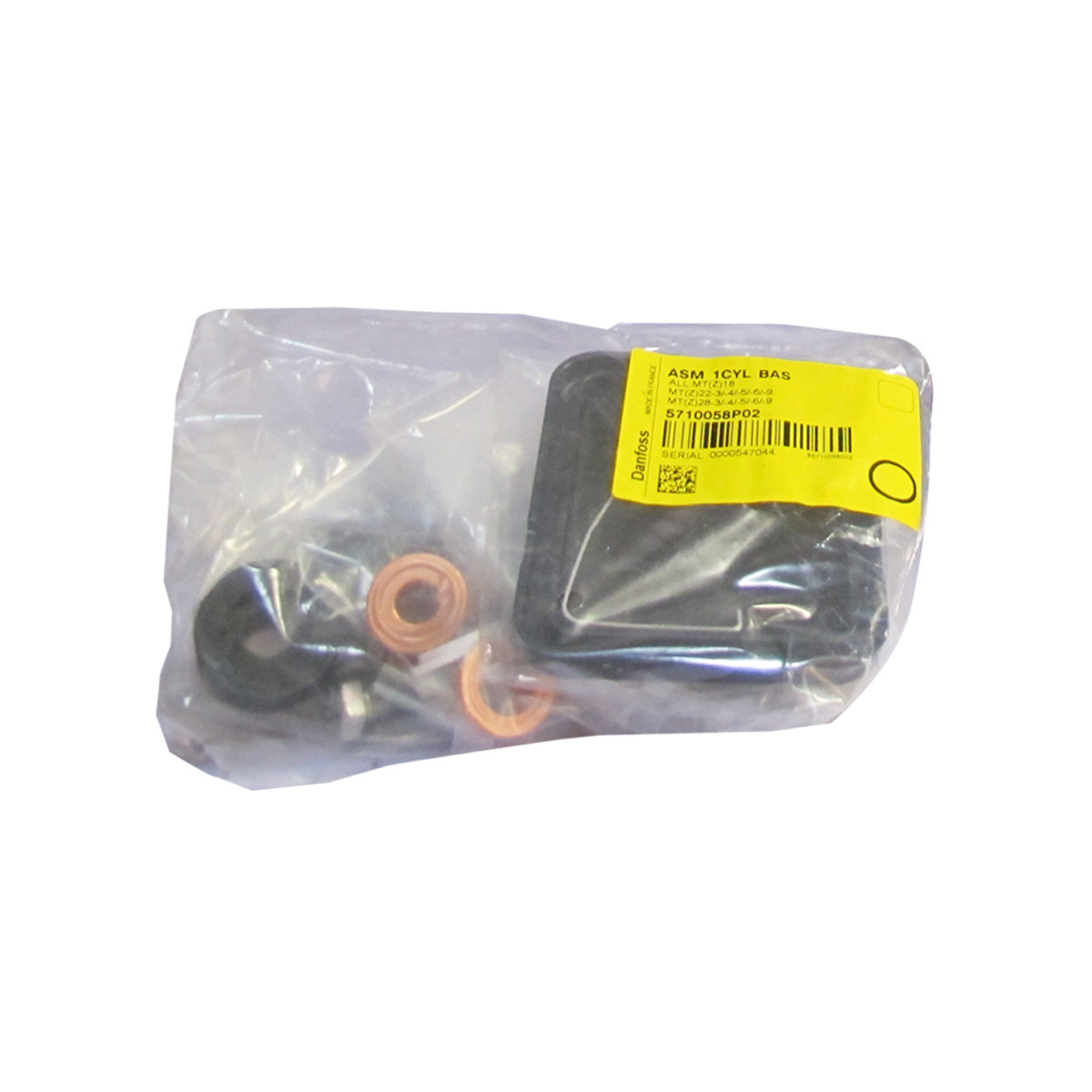

Shipped Mounting: Mounting Kit with Grommets, Bolts, Nuts, Sleeves and Washers
Shipped Oil: Initial Oil Charge
Suction Connection Height [mm]: 263
Suction Connection Mounting Torque [Nm]: 80
Suction Connection Pipe Size [in]: 0.5
Suction Connection Rotolock Size [in]: 1
Suction Connection Size [in]: 1
Suction Connection Sleeve Pipe Size [in]: 0.5
Swept Volume [cm3]: 48.06
Test Dif [bar] [Max]: 30
Test HP [bar] [Max]: 30
Test LP [bar] [Max]: 25
Torque Earth [Nm]: 2
Total Height [mm]: 333
Type: MT
Viscosity [cP]: 32
Winding Resistance for Three-phase Compressors with Identical Windings [Ohm]: 6.3
